Auto Umbrella technology transforms a simple hand action into smooth, controlled motion that opens or closes the canopy with minimal effort. For both compact folding models and large patio umbrellas, the "auto crank" idea means the mechanism does most of the work while the user enjoys easy, reliable operation.[1][9]
In everyday usage, "auto crank" describes any umbrella that can be opened or adjusted with a mechanism instead of pure manual force. For handheld products, this usually means an Auto Umbrella with a push button and internal springs; for patio products, it often means a crank handle that winds cables and levers.[4][1]
Although the structures are different, both systems convert simple user input into controlled canopy movement. A button‑driven Auto Umbrella uses spring power, while a crank‑lift patio umbrella uses mechanical advantage from gears or pulleys, but the user experiences both as quick and effortless.[5][1]
A modern Auto Umbrella contains several precisely engineered components that work together to provide one‑touch opening and, in some designs, automatic closing.
Main internal elements include:
- Central shaft: Often made of steel or aluminum, this shaft houses the spring and sliding runners that drive the Auto Umbrella's motion.[9][10]
- Coil spring: A strong, pre‑loaded spring stores energy when the Auto Umbrella is closed and releases that energy to open the canopy.[11][9]
- Ribs and stretchers: These arms link the shaft to the fabric canopy and transfer motion from the runner into the familiar dome shape.[10][9]
- Runner and sliders: The main runner moves along the shaft, pulling the stretchers and ribs into position during opening and returning them during closing.[9][10]
- Locking catches: Small hooks, pins, or cams hold the Auto Umbrella in a fully open or fully closed position until the user triggers release.[12][10]
- Handle and button: The user interface, where a single press activates the mechanism for an Auto Umbrella, or where a crank handle is mounted in patio models.[1][4]
When these parts are correctly designed and aligned, the Auto Umbrella delivers a reliable "auto crank" feel over thousands of cycles.[4][9]

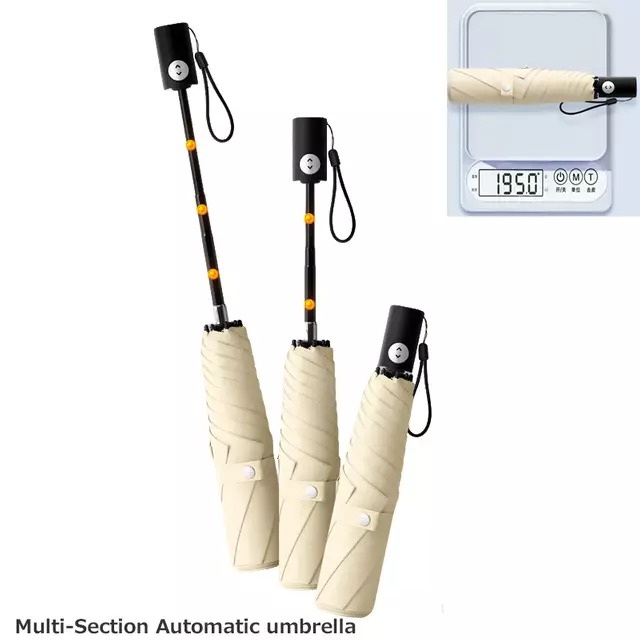

In a compact Auto Umbrella, the opening process is almost instantaneous from the user's perspective, but internally it follows a sequence.
1. Locked and pre‑loaded
- When the Auto Umbrella is closed, the user pushes the shaft down until it locks, compressing the internal spring and storing energy.[11][9]
- A catch or latch holds the spring in this compressed state, keeping the Auto Umbrella compact until needed.[10][12]
2. Button press and release
- Pressing the button in the handle moves a small internal lever or sliding piece that disengages the catch.[9][10]
- Once unlocked, the compressed spring tries to return to its natural length, pushing the inner parts of the Auto Umbrella rapidly upward.[11][9]
3. Runner movement and canopy opening
- The upward motion drives the main runner along the shaft, pulling the stretchers and ribs into an open position.[10][9]
- As the Auto Umbrella reaches full extension, another locking point engages at the top to hold the canopy open firmly against wind and gravity.[12][10]
The result is the iconic "one‑touch" action that defines a high‑quality Auto Umbrella: a clean, controlled snap from closed to fully open.[9][11]
Some Auto Umbrella designs offer both automatic opening and automatic closing of the canopy. The principle is similar but tuned for reverse motion.
Typical sequence:
- Unlocking from open: Pressing the same button again releases the top lock that holds the ribs in their fully open position.[10][9]
- Collapsing the canopy: Internal linkages pull the stretchers inward so the ribs fold, causing the Auto Umbrella canopy to collapse neatly around the shaft.[9][10]
- Manual reset: After the canopy folds, the user manually pushes the shaft down to recompress the main spring, preparing the Auto Umbrella for the next cycle.[13][11]
Even in auto open/auto close models, most compact Auto Umbrellas do not pull the shaft down automatically; this manual step protects the mechanism and limits spring stress.[13][11]
Compared with manual designs, an Auto Umbrella adds complexity but also strong functional advantages. Manual umbrellas rely on the user sliding a runner along the shaft and locking it, which requires more hand strength and coordination.[4][11]
An Auto Umbrella transfers most of that work to an internal spring or crank system, which:
- Reduces required effort and finger strain.
- Simplifies one‑handed operation in real‑life situations.
- Offers a more premium and modern user experience that appeals to many brands.[14][13]
High‑quality frames and springs help ensure that an Auto Umbrella can still meet durability expectations, even with more moving parts than manual models.[15][16]
On the patio side, "auto crank" normally refers to a lift mechanism where the user turns a crank handle to raise, lower, or tilt a large outdoor canopy. Inside the pole, cables, pulleys, gears, and levers translate crank rotation into vertical and tilting movement.[1][4]
Key patio auto crank features:
- Crank lift: Turning the handle winds a cable that pulls the hub and ribs upward until the patio umbrella is fully open. The mechanism then locks in place automatically.[1][4]
- Auto tilt: Continued cranking after full opening engages a tilt mechanism that pivots the upper part of the pole, allowing the canopy to tilt toward the sun for better shade.[2][3]
- Smooth control: The crank and internal gearing provide mechanical leverage, so users can easily operate large canopies that would be heavy to lift manually.[5][1]
This "crank and tilt" or "auto tilt" category gives customers an outdoor equivalent to a handheld Auto Umbrella: simple, smooth control with minimum effort.[7][2]
Auto tilt patio umbrellas combine crank lifting with an internal tilting system that activates as the canopy reaches its fully open position. The tilt function does not require a separate button; instead, it depends on the crank's position and the internal linkage.[3][2]
Typical auto tilt sequence:
- The user turns the crank clockwise to open the canopy fully, pulling cables or rods upward.[2][4]
- Once fully open, continued cranking shifts the tension in specific levers or joints inside the upper pole section.[7][2]
- This change in tension allows the upper pole and canopy to pivot, tilting the umbrella toward one side without extra manual lifting.[2][7]
Inside the pole, cam shapes, levers, or sliding joints determine how far and in which direction the canopy can tilt, balancing user control with structural safety.[7][2]
Auto Umbrella and auto crank patio systems give both end users and brands clear benefits that support premium positioning.
Main advantages:
- One‑handed operation: Handheld Auto Umbrellas allow users to manage bags, phones, or children while opening or closing the canopy.[14][13]
- Fast weather response: A quick press or crank action helps users react instantly to sudden rain or sun, improving comfort and perceived product value.[5][13]
- Smooth, controlled motion: Springs and crank mechanisms regulate canopy movement, reducing jerky motion and finger‑pinch risks compared with basic manual systems.[5][1]
- Premium image: Auto Umbrella and auto crank patio designs feel modern and advanced, making them attractive for branding, corporate gifts, and retail upgrades.[3][13]
These features help explain why many global brands and retailers now prioritize Auto Umbrella and auto tilt patio products in their portfolios.[4][5]
For an OEM manufacturer, tuning the internal mechanism of an Auto Umbrella is critical for balancing cost, performance, and durability.
Key engineering and sourcing points:
- Spring specification: The spring in an Auto Umbrella must be strong enough to open reliably, but not so strong that it is difficult to compress or causes harsh impact at full extension.[11][9]
- Frame material: Steel, alloy, or fiberglass ribs and stretchers must withstand repeated high‑speed openings while resisting bending in wind.[16][15]
- Joint design: Pinch‑free joints and rounded edges reduce user injury risk, which is a major selling point for Auto Umbrella products in markets with strict safety expectations.[16][13]
- Corrosion resistance: Moisture, sweat, and salt air can corrode small springs and pins; using stainless components or protective coatings keeps the Auto Umbrella mechanism smooth for longer.[2][4]
- Cycle testing: High‑quality Auto Umbrella and auto crank patio models are tested for hundreds or thousands of operating cycles to verify that cranks, springs, and linkages can survive real‑world usage.[7][4]
By adjusting these parameters, OEM factories can customize the "feel" of an Auto Umbrella or auto crank system to match different brand requirements, from soft and gentle to crisp and powerful.[4][9]
Clear usage guidance helps end customers experience the best performance from an Auto Umbrella while protecting the mechanism.
Best‑practice tips:
- Always reset straight: When pushing the shaft down to reset an Auto Umbrella, keep it straight rather than twisting, to avoid bending the rod or damaging the locking parts.[17][18]
- Avoid over‑pressing: Press the button once, firmly but not repeatedly; continuous pressing can interfere with the locking sequence of the Auto Umbrella.[18][9]
- Do not force in wind: For both Auto Umbrella and auto crank patio products, avoid operating the mechanism under strong wind load, which can stress ribs and joints.[2][5]
- Let it dry: Allow the Auto Umbrella to dry fully before storage to reduce corrosion and mildew and keep the mechanism moving freely.[5][2]
These simple instructions greatly extend the service life of Auto Umbrella mechanisms in daily use.[18][2]
Auto crank patio umbrellas also need basic care to deliver long‑term performance, especially in outdoor commercial or hospitality settings.
Recommended practices:
- Regular inspection: Check cables, joints, and crank housings for wear or fraying; replace worn parts early to avoid sudden failure.[1][4]
- Lubrication: Periodically lubricate moving joints and tilt mechanisms to maintain smooth auto tilt action and prevent corrosion.[2][5]
- Proper closing: Always fully close and secure auto crank patio umbrellas during storms or when not in use to protect both the mechanism and the fabric canopy.[5][2]
Professional OEM partners can offer maintenance guides and spare‑part solutions, which help distributors and brand owners support their customers over the full life cycle of auto crank products.[4][5]
Auto crank technology, whether in a compact Auto Umbrella or a large patio umbrella, centers on transforming simple user effort into smooth, controlled canopy movement. Internal springs, runners, and locking catches power one‑touch opening in handheld Auto Umbrella designs, while cables, gears, and tilt levers drive crank‑operated patio umbrellas that open, close, and auto tilt with ease. For OEM manufacturers and international brand partners, careful engineering of springs, frames, joints, and crank systems makes it possible to deliver Auto Umbrella products that feel premium, operate safely, and maintain reliable performance across thousands of cycles in real‑world conditions.[15][16][1][9][4]
An Auto Umbrella stores energy by compressing a coil spring inside the shaft when the user pushes the canopy closed until it locks. Pressing the button releases the lock, allowing the spring to expand and drive the runner and ribs upward, which opens the canopy automatically.[10][11][9]
Most auto open/auto close Auto Umbrella models use the button to open the canopy and to fold it, but the user still pushes the shaft down manually to recompress the spring. This manual step reduces mechanical stress and helps the Auto Umbrella mechanism remain reliable over many cycles.[13][11][10]
A handheld Auto Umbrella uses a button‑activated spring mechanism inside a compact shaft to open or partially close the canopy. A crank patio umbrella relies on a rotating handle and internal cables, pulleys, and tilt linkages to raise, lower, and tilt a large outdoor canopy with smooth mechanical advantage.[11][1][9][4]
Auto Umbrella products contain more moving parts than manual umbrellas, but modern designs use stronger materials, improved joints, and thorough cycle testing to maintain durability. When users avoid forcing the mechanism, keep it dry, and follow basic care instructions, a quality Auto Umbrella can be just as dependable as a manual model in everyday use.[15][18][2][4]
An auto tilt crank patio umbrella opens when the user turns the crank until the canopy is fully extended, then tilts as the user continues cranking, which shifts internal levers or cables to pivot the upper pole. This design lets the user adjust shade direction from a seated position without lifting or pushing the canopy by hand.[3][7][2]
